HIGH TECHNOLOGIES WIN AGAINST RISK
GEOPHYSICAL MONITORING, GEODYNAMIC SAFETY, AUTOMATIC SYSTEM OF EARLY WARNING
Contact us:
info@georw.ru

GEOTEK Research & Production Company

It is widely agreed that all catastrophic geological phenomena (EARTHQUAKES, LANDSLIDES, rock falls, karst, mudflow and man-made processes underworking excavation, subsidence, etc.) occur unexpectedly.

However, scientists know that each such threatening process is preceded by a long "preparatory period"!

We understood how to detect and control it in time with the help of innovative technology from the LLC GEOTEK, developed jointly with the Siberian Branch of the Russian Academy of Sciences, based on the ENPEMF  (Earth’s Natural Pulsed Electromagnetic Field) in zones of increased geodynamic risk.

The geophysical  method is based on the functional relationship between mechanical stresses in rock massifs and the number of electromagnetic pulses generated by rocks in the field of mechanical stresses. This allows to evaluate the stress condition of rock massifs on a qualitative level, and also to predict the development of geodynamic processes.

The experience of implementing our practical work shows that the ENPEMF method technology brings undoubted benefits and can provide vital activity in geodynamically active areas. That is why our Automated System for Geophysical Monitoring of Early Warning of Geological Hazards (AGMS) successfully operate at a number of critical facilities of PJSC Gazprom.

AGMS system  has no analogues both in Russia and in the world. Its main advantage is the opportunity to forecast the activation of geological events (EARTHQUAKES, LANDSLIDES) well in advance of their actual dates.

The main result of implementation of AGMS system is duly adoption of measures to prevent catastrophic and accidental situations at facilities located at potentially dangerous geodynamic sites as well as reduction of effects of emergency situations.

landslides
underworking excavation

AGMS can be applied to provide the early warning of activation of hazardous geological processes for facilities of the following specialization fields:

- highways and railroads;

- oil/gas and defense complex sites;

- power complex (including Nuclear stations);

- large engineering constructions, hydroelectric complexes (dams, barrages);

- mining;

- pipelines;

- urban infrastructure.

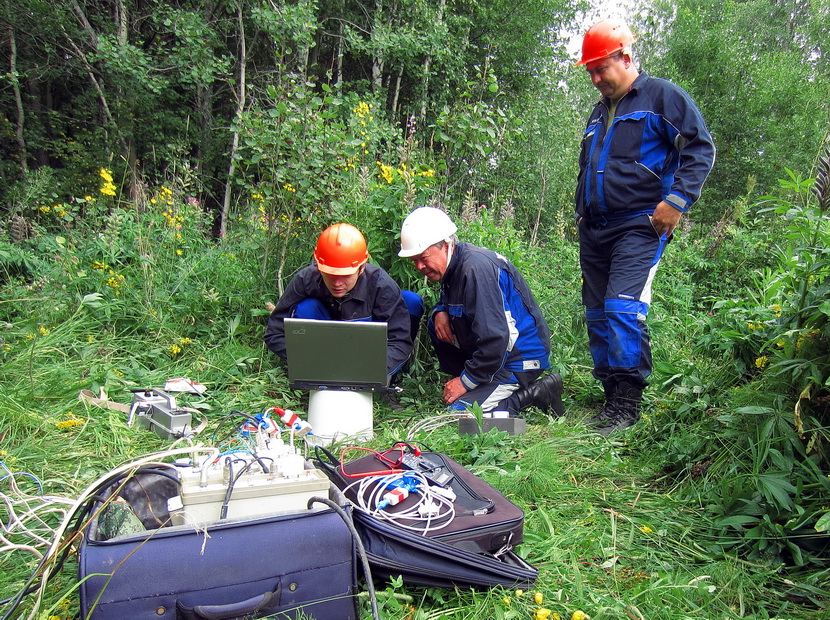

detailed ENPEMF and complex observation

geophysics data recorders ENPEMF for AGMS

ADVANTAGES OF AGMS SYSTEM

The main advantage of the AGMS system is a possibility to forecast activation of geological events (earthquakes, landslides, etc.) well ahead of its real occurrence (from 2 days to 1-2 months). This temporary horizon is currently unavailable for any other geohazard monitoring and alarming system.

AGMS makes possible to receive a reliable information in advance of the catastrophically dangerous situation in the problem area and forecast its development!

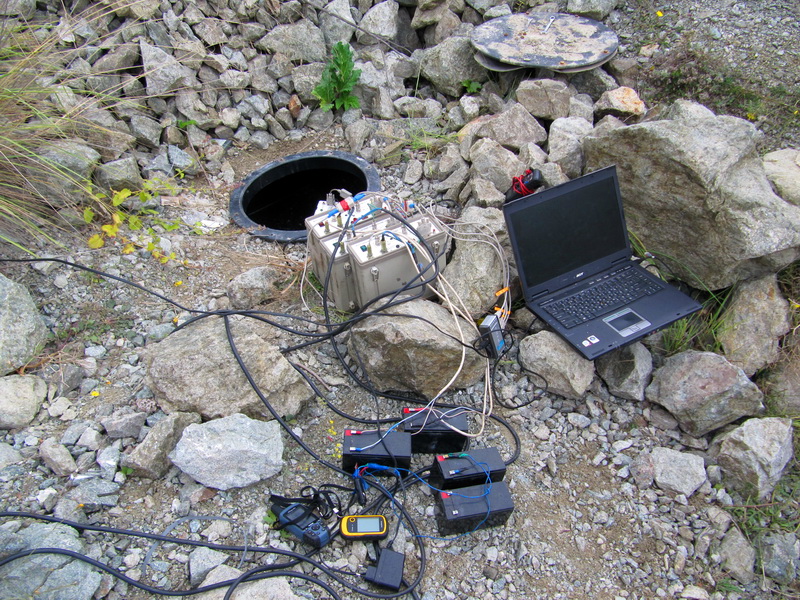

the equipment in vandal-proof bunkers and observation site of the AGMS

AGMS FUNCTIONS

1. Real-time display of early periods of the beginning of changes in stressed and deformed state of grounds under the influence of hazardous geological processes which are still not evident in the surface and unavailable for traditional control methods.

2. Effective forecasting of development of hazardous geodynamic situation.

3. Real-time situation monitoring and possibility to operatively adopt weighted governing decisions Special  Management Services.

The highest efficiency of the  Automated System for Geophysical Monitoring of Early Warning of Geological Hazards derives from minimizing the number of casualties, let alone the economy of immense funds required for liquidation of consequences of accidents which could have been avoided!



WORKING TECHNOLOGY APPLIED IN CREATION AND IMPLEMENTATION OF THE AGMS SYSTEM IS CARRIED OUT IN PHASES:

1. The analyze of earlier performed engineering works, archive materials and published materials. Pre-aquisition deciphering.

2. Complex diagnostics of ground condition: Structural geodynamic mapping of ground condition through ENPEMF methods with the involvement of geological engineering research.

3. Office processing of the materials.

4. The results of complex works are used to determine the optimal number of points and places to build observation stations on landslide slope (as well as geological and geomorphological features of landslide) and benchmark stations (basis observation points) in places where the intensity of field research ENPEMFsignals is practically equal to zero and geodynamic processes are not observed.

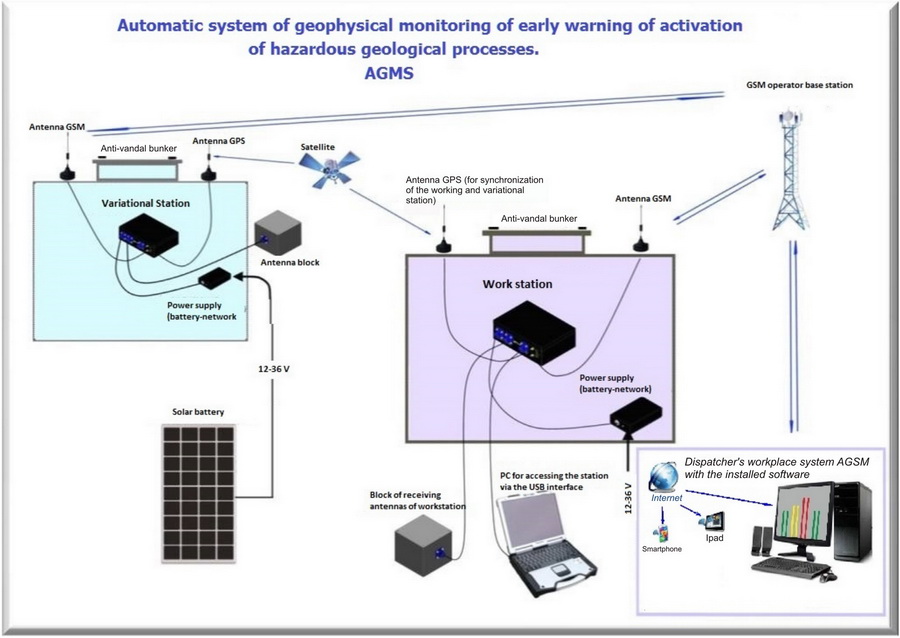

5. Preparation for the arrangement of AGMS system (geophysical stations (multi-channel geophysics data recorder), equipment and accessories, data collection module, GSM modem, vandal-proof submersible bunkers) with the arrangement of power supply channels (accumulators, solar panels or a cable for onsite power supply), governing computer, software.

6. Arrangement of operator workstation, communication with the dispatcher.

7. Installation of observation points, instrument testing and setting, putting AGMS into operation with the possibility to run on-line (Internet) monitoring of the situation and to operatively make well-balanced governing decisions. After putting AGMS into operation the personnel shall be taught its maintenance and data analysis.

When necessary, the repair of system instruments and equipment is carried out by our specialists. The consultation with our specialists on data deciphering issues is possible any time.

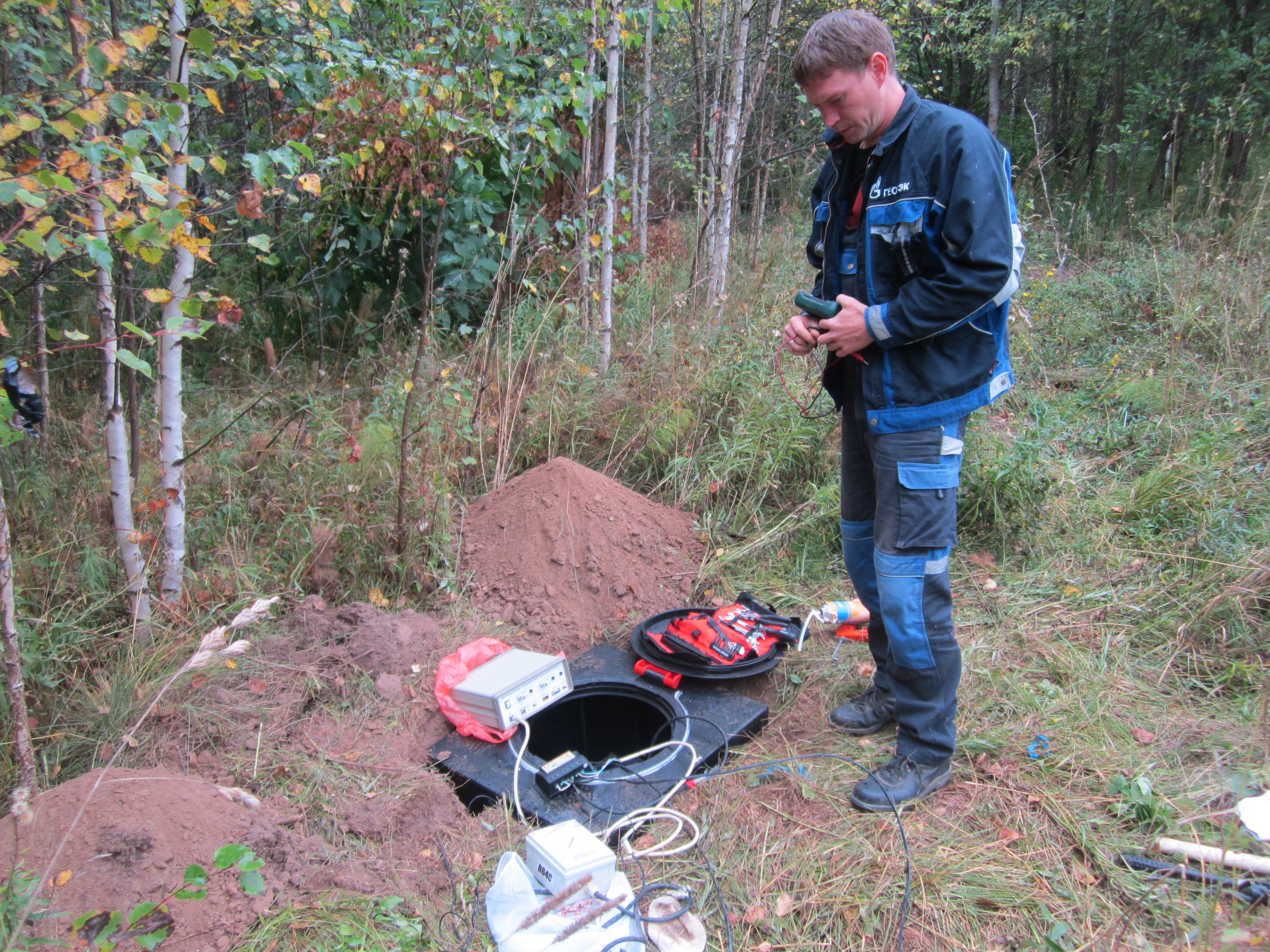

 testing and setting the "geophysics data recorder" in observation stations

a) quite periods
b) problem (HGP activation) periods on the
monitor of dispatcher

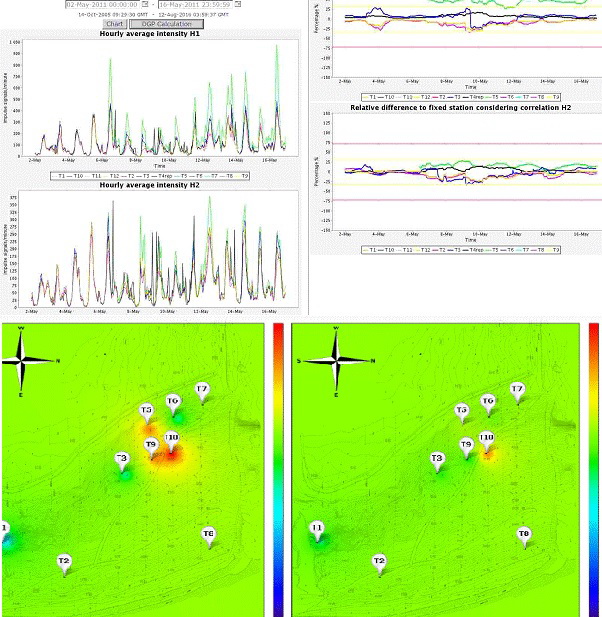

system AGMS dispatcher environment windo





















a) on-line monitoring of the situation                                                              b) example activation of ENPEMF on the slope



Automated System for Geophysical Monitoring of Early Warning of Geological Hazards on the basis of the ENPEMF method for the technological risks reducing!

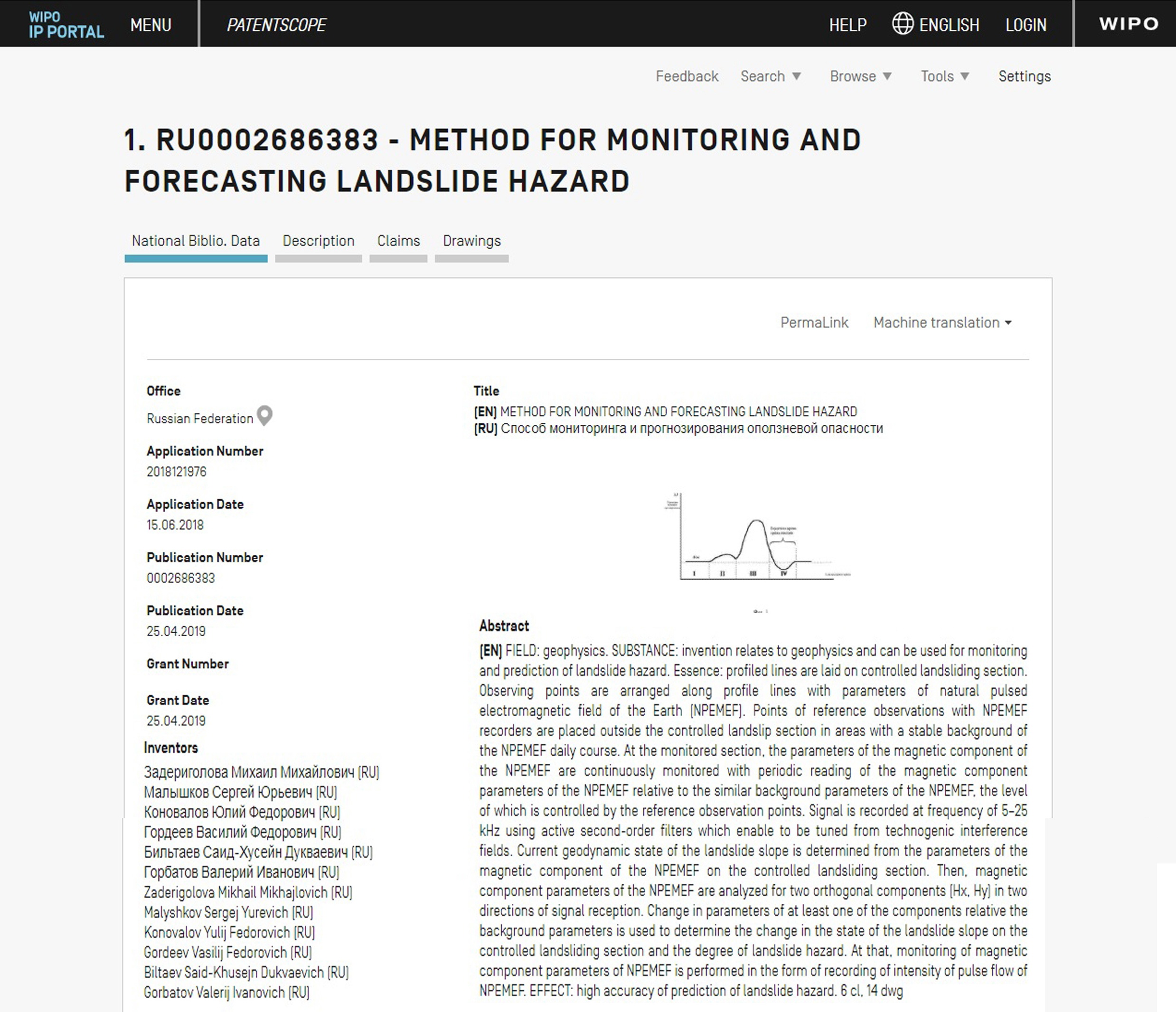

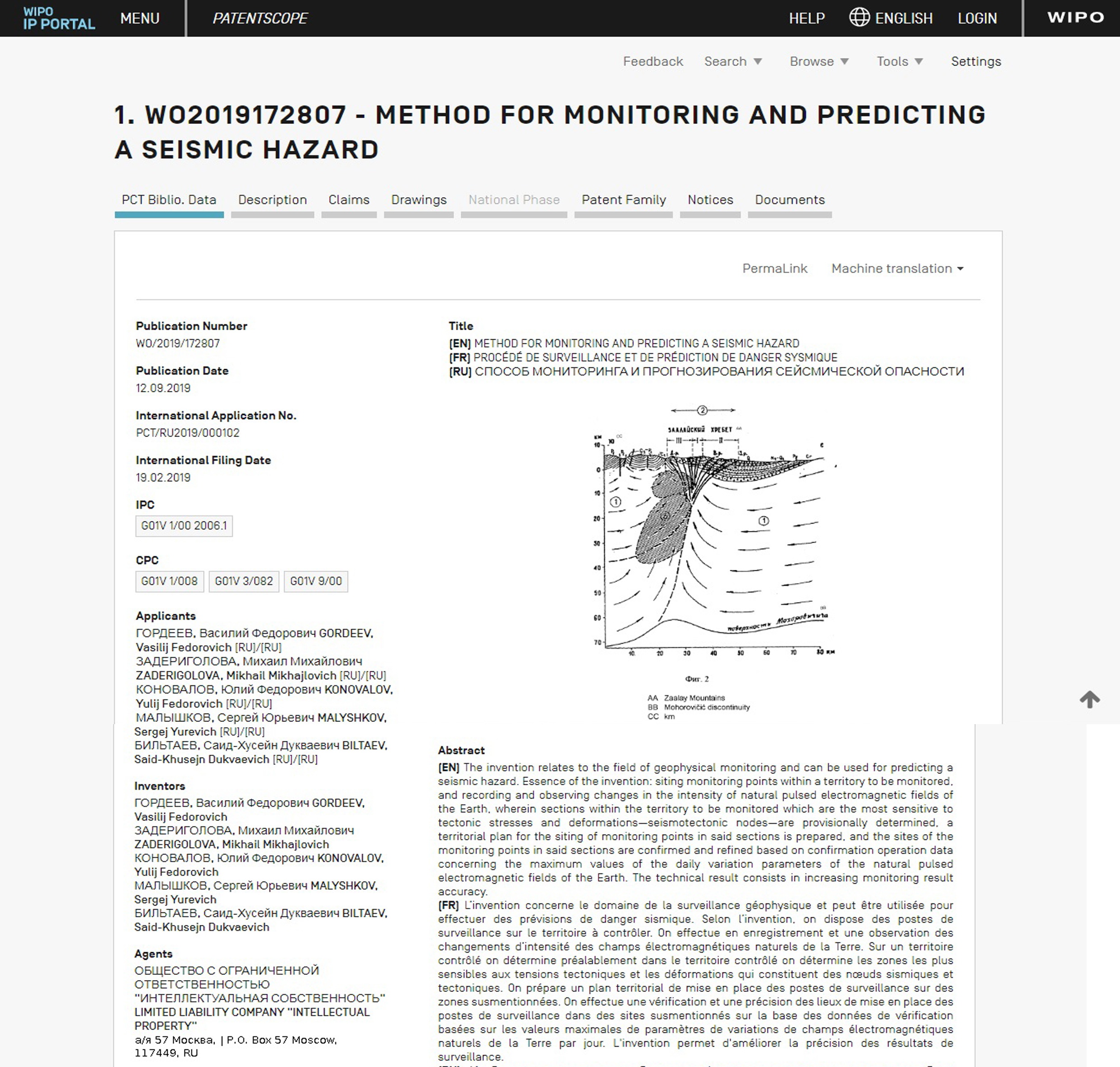

This technology based upon Earth’s Natural Pulsed Electromagnetic Field (ENPEMF) methods holds the number of RF Patents and the instruments and equipment are certified.

Authors of Patents have many publications of scientific articles (available on request).
